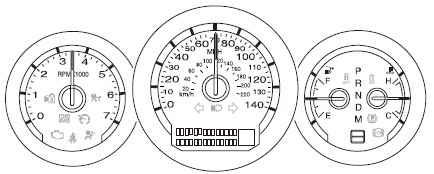

Warning lights and gauges can alert you to a vehicle condition that may

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions.

Many lights will illuminate when you start your vehicle to make sure the bulbs work. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Note: Some warning lights are reconfigurable telltale (RTT) indicator lights and will illuminate in the message center. These lights function the same as the other warning lights.

Charging system (RTT):

Charging system (RTT):

Illuminates when the battery is not

Illuminates when the battery is not charging properly. If it stays on while the engine is running, there may be a malfunction with the charging system. Contact your authorized dealer as soon as possible. This indicates a problem with the electrical system or a related component.

Engine oil pressure (RTT):

Illuminates when the oil pressure

Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.

Engine coolant temperature (RTT):

Illuminates when the engine

Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

Low fuel (RTT):

Illuminates when

Illuminates when the fuel level in the fuel tank is at or near empty. Refer to Fuel gauge in this chapter.

Low washer fluid (RTT):

Illuminates when the washer level in

Illuminates when the washer level in the washer fluid reservoir is low.

Throttle Control/Transmission (RTT):

Illuminates when a

Illuminates when a powertrain or an AWD fault has been detected. Contact your authorized dealer as soon as possible.

Door ajar (RTT):

Illuminates when

Illuminates when the ignition is in the run position and any door is not completely closed.

Trunk ajar (RTT):

Illuminates in

Illuminates in the message center display when the ignition is in the run position and the trunk is open.

Service engine soon:

The Service

The Service engine soon indicator light illuminates when the ignition is first turned on to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the Service engine soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present.

However, if after 15 seconds the Service engine soon light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Solid illumination after the engine is started indicates the on-board diagnostics system (OBD-II) has detected a malfunction. Refer to On-board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

WARNING: Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Brake system warning light:

To

To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned on when the engine is not running, or in a position between on and start, or by applying the parking brake when the ignition is turned on. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level or a brake system malfunction and the brake system should be inspected immediately by your authorized dealer.

WARNING: Driving a vehicle with the brake system warning light on is dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle.

Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system:

If the

If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

Airbag readiness:

If this light fails

If this light fails to illuminate when the ignition is turned on, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will sound if there is a malfunction in the indicator light.

Safety belt:

Reminds you to fasten

Reminds you to fasten your safety belt. A Belt-Minder chime will also sound to remind you to fasten your safety belt. Refer to the Seating and Safety Restraints chapter to activate/deactivate the Belt-Minder chime feature.

AdvanceTrac /Traction control:

Illuminates when the

Illuminates when the AdvanceTrac /Traction control is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information.

AdvanceTrac /Traction Control™ off light:

Illuminates

Illuminates when the AdvanceTrac /Traction Control™ has been disabled by the driver. Refer to the Driving chapter for more information.

Low tire pressure warning:

Illuminates when your tire pressure

Illuminates when your tire pressure is low. If the light remains on at start up or while driving, the tire pressure should be checked. Refer to Inflating your tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to on, the light will illuminate for three seconds to ensure the bulb is working. If the light does not turn on or begins to flash, have the system inspected by your authorized dealer. For more information on this system, refer to Tire pressure monitoring system (TPMS) in the Tires, Wheels and Loading chapter.

Adaptive cruise control (ACC) (if equipped):

Illuminates when

Illuminates when there is a vehicle in front of you.

Refer to Adaptive cruise control in the Driver Controls chapter for more information.

Speed control:

Illuminates when

Illuminates when the speed control is engaged or when the ACC is engaged without following a vehicle. Turns off when the speed control system is disengaged or when the ACC is activated.

Anti-theft system:

Flashes when

Flashes when the SecuriLock Passive Anti-theft System has been activated.

Turn signal:

Illuminates when the

Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators flash faster, check for a burned out bulb.

High beams:

Illuminates when the

Illuminates when the high beam headlamps are turned on.

Heads up display (if equipped):

A red bar will illuminate on the

A red bar will illuminate on the windshield in certain instances when using adaptive cruise control and/or the collision warning system. It will also illuminate momentarily when you start your vehicle to make sure the display works. See the Driving chapter for more information.

Key-in-ignition warning chime (if equipped):

Sounds when the key is left in the ignition in the off or accessory position and the driver’s door is opened.

Headlamps on warning chime:

Sounds when the headlamps or parking lamps are on, the ignition is off (the key [if equipped] is not in the ignition) and the driver’s door is opened.

Parking brake on chime:

Sounds when the parking brake is left on and the vehicle is driven. If the warning stays on after the park brake is off, contact your authorized dealer as soon as possible.
