Power distribution box

Power distribution box - Fuses and relays - Roadside Emergencies - Lincoln MKZ Owners Manual - Lincoln MKZ

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.

WARNING: Always disconnect the battery before servicing high current fuses.

WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

If the battery has been disconnected and reconnected, refer to the Battery section of the Maintenance and Specifications chapter.

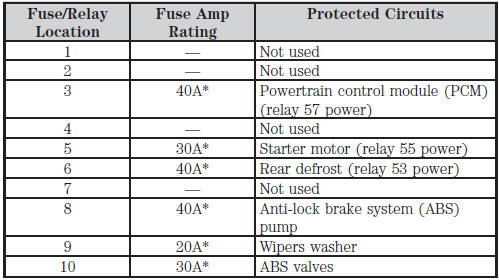

The high-current fuses are coded as follows.

The high-current fuses are coded as follows.
