The front passenger sensing system uses a passenger airbag status indicator which will illuminate indicating that the front passenger frontal airbag is either ON (enabled) or OFF (disabled). The indicator lamp is located in the center stack of the instrument panel.

Note: The passenger airbag status indicator OFF and ON lamps will

Note: The passenger airbag status indicator OFF and ON lamps will illuminate for a short period of time when the ignition is first turned on to confirm it is functional.

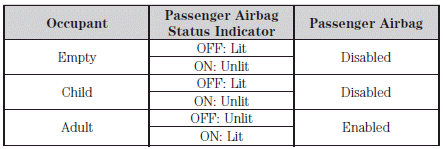

The front passenger sensing system is designed to disable (will not inflate) the front passengers frontal airbag when the front passenger seat is unoccupied, or a rear facing infant seat, a forward-facing child restraint, or a booster seat is detected.

When the front passenger sensing system disables (will not inflate) the front passenger frontal airbag, the passenger airbag status indicator will illuminate the OFF lamp and stay lit to remind you that the front passenger frontal airbag is disabled.
If the child restraint has been installed and the passenger airbag status indicator illuminates the ON lamp, then turn the vehicle off, remove the child restraint from the vehicle and reinstall the restraint following the child restraint manufacturers instructions.

The front passenger sensing system is designed to enable (may inflate) the front passengers frontal airbag anytime the system senses that a person of adult size is sitting properly in the front passenger seat.

When the front passenger sensing system enables the front passenger frontal airbag (may inflate), the passenger airbag status indicator will illuminate the ON lamp and remain illuminated.

If a person of adult size is sitting in the front passengers seat, but the passenger airbag status indicator OFF lamp is lit, it is possible that the person isnt sitting properly in the seat. If this happens:
Turn the vehicle off and ask the person to place the seatback in the full upright position.
Have the person sit upright in the seat, centered on the seat cushion, with the persons legs comfortably extended.
Restart the vehicle and have the person remain in this position for about two minutes. This will allow the system to detect that person and enable the passengers frontal airbag.
If the passenger airbag status indicator OFF lamp remains lit even after this, the person should be advised to ride in the rear seat.

Note: When the passenger airbag status indicator OFF lamp is

Note: When the passenger airbag status indicator OFF lamp is illuminated, the passenger side airbag (seat mounted) may be disabled to avoid the risk of airbag deployment injuries.

WARNING: Even with Advanced Restraints Systems, children 12 and under should be properly restrained in a rear seating position.

After all occupants have adjusted their seats and put on safety belts, its very important that they continue to sit properly. A properly seated occupant sits upright, leaning against the seat back, and centered on the seat cushion, with their feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

WARNING: Sitting improperly out of position or with the seat back reclined too far can take off weight from the seat cushion and affect the decision of the front passenger sensing system, resulting in serious injury or death in a crash.

Always sit upright against your seatback, with your feet on the floor.

If you think that the state of the passenger airbag status indicator lamp is incorrect, check for the following:

Objects lodged underneath the seat
Objects between the seat cushion and the center console (if equipped)
Objects hanging off the seat back
Objects stowed in the seatback map pocket (if equipped)
Objects placed on the occupants lap
Cargo interference with the seat
Other passengers pushing or pulling on the seat
Rear passenger feet and knees resting or pushing on the seat The conditions listed above may cause the weight of a properly seated occupant to be incorrectly interpreted by the front passenger sensing system. The person in the front passenger seat may appear heavier or lighter due to the conditions described in the list above.

WARNING: To reduce the risk of possible serious injury:

Do not stow objects in seat back map pocket (if equipped) or hang objects off seat back if a child is in the front passenger seat.

Do not place objects underneath the front passenger seat or between the seat and the center console (if equipped).

Check the passenger airbag status indicator lamp for proper airbag status.

Failure to follow these instructions may interfere with the front passenger seat sensing system.

In case there is a problem with the front passenger sensing system, the airbag readiness light in the instrument cluster will stay lit.

If the airbag readiness light is lit, do the following:

If the airbag readiness light is lit, do the following:

The driver and/or adult passengers should check for any objects that may be lodged underneath the front passenger seat or cargo interfering with the seat.

If objects are lodged and/or cargo is interfering with the seat; please take the following steps to remove the obstruction:

Pull the vehicle over.
Turn the vehicle off.
Driver and/or adult passengers should check for any objects lodged underneath the front passenger seat or cargo interfering with the seat.
Remove the obstruction(s) (if found).
Restart the vehicle.
Wait at least two minutes and verify that the airbag readiness light in the instrument cluster is no longer illuminated
If the airbag readiness light in the instrument cluster remains illuminated, this may or may/not be a problem due to the front passenger sensing system.

DO NOT attempt to repair or service the system; take your vehicle immediately to an authorized dealer.

If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this Owners Guide or see your authorized dealer.

WARNING: Any alteration/modification to the front passenger seat may affect the performance of the front passenger sensing system.

Determining if the system is operational

The supplemental restraint system uses a warning indicator light in the instrument cluster or a backup tone to indicate the condition of the system. Refer to the Warning lights and chimes section in the Instrument Cluster chapter. Routine maintenance of the airbag is not required.

A difficulty with the system is indicated by one or more of the following:

A difficulty with the system is indicated by one or more of the following:

The readiness light (same light for front and side airbag system) will either flash or stay lit.
The readiness light will not illuminate immediately after ignition is turned on.
A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and/or light are repaired.

If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a collision.
